codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 47302985 PADDING RH V1,V2,V8,V9,V11
01
1 47302985 PADDING RH V19,V20,V21
01
2 47303150 PADDING LH V1,V2,V8,V9,V11
01
2 47303150 PADDING LH V19,V20,V21
01
3 47302984 FRAMING RH
  • C6203
 01
3 46841094 FRAMING
  • D6203
 01
4 47303149 FRAMING LH
  • C6203
 01
4 46841095 FRAMING
  • D6203
 01
5 46731664 PIN
02
6 46733415 ARMREST E543,E51Y
01
7 127207636 BUSH E543,E51Y
02
8 127219636 PIN E543,E51Y
02
9 102526688 ROD
  • C7322
 02
9 183880880 ROD
  • D7322
 02
10 11572624 SCREW M10X28
04
11 15624511 RIVET
02
12 46992548 SCREW
03
13 46771902 HINGE
01
14 123624080 BUSH
04

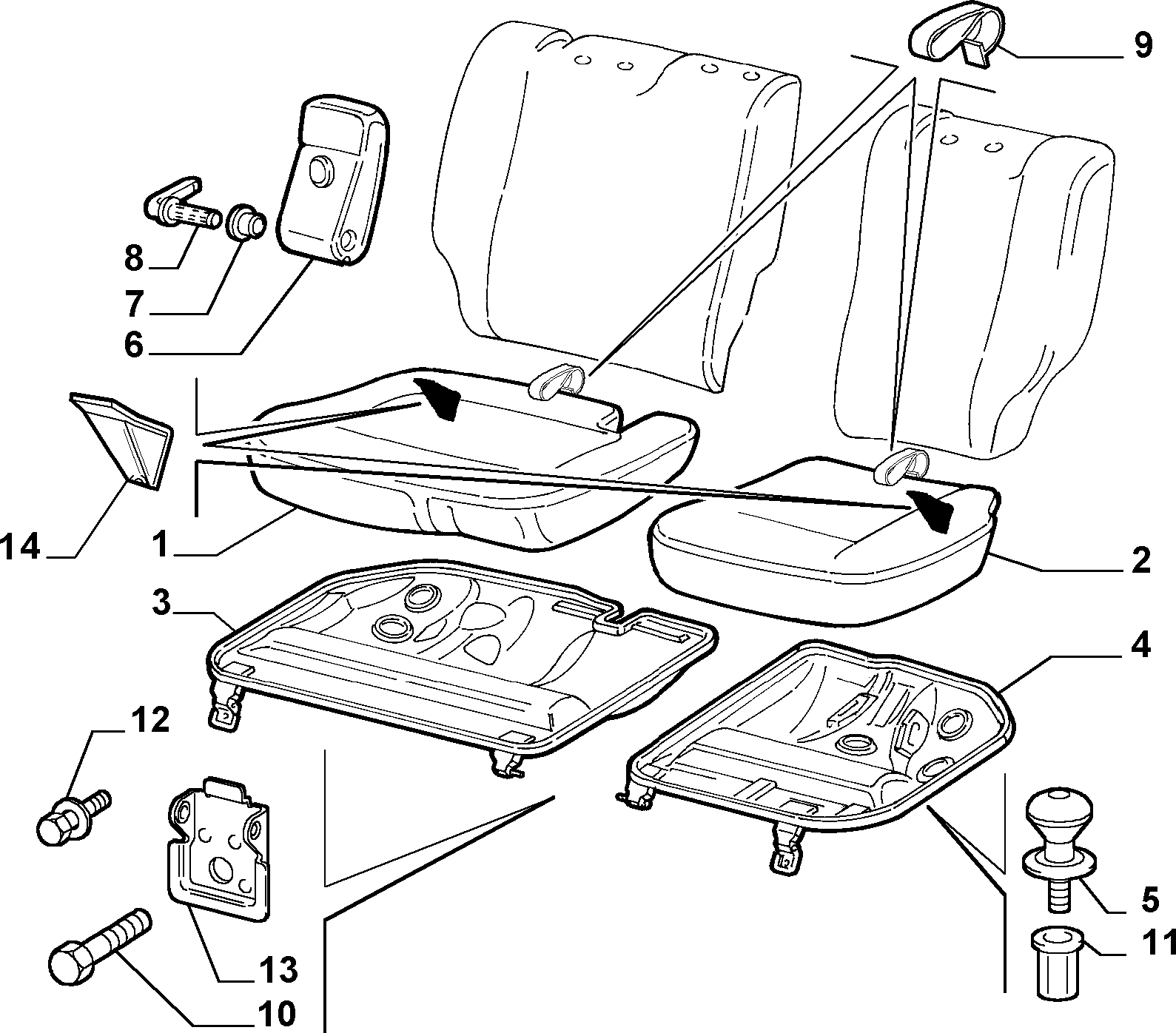

An image of parts
70613/00 - REAR SEAT (Var.:1/Rev.:0)
An image of parts
70613/00 - REAR SEAT (Var.:2/Rev.:0)
An image of parts
70613/00 - REAR SEAT (Var.:3/Rev.:0)
An image of parts
70613/00 - REAR SEAT (Var.:4/Rev.:0)
An image of parts
70613/00 - REAR SEAT (Var.:5/Rev.:0)
An image of parts
70613/00 - REAR SEAT (Var.:6/Rev.:0)
An image of parts
70613/00 - REAR SEAT (Var.:7/Rev.:0)
