code	Prod. code	Description	Compat.	Modif.	Qty	Notes	Components	Colour	Reman.
1	60810372	SCREW	E025		02
2	60805231	PLANE WASHER	E025		04
3	60812444	SWITCH	E025,M6		01
3	60810375	SWITCH	E025,M5		01
4	7772781	BRACKET	E025,M6		01
4	7645061	BRACKET	E025,M5		01
5	60800642	LOCK WASHER	E025		02
6	16101711	NUT	E025		02
7	60808925	SCREW	E025		01
8	60800750	LOCK WASHER	E025		04
9	7772777	BRACKET	E025,M6		01
9	60810373	BRACKET	E025,M5		01
10	60808704	SCREW	E025		02

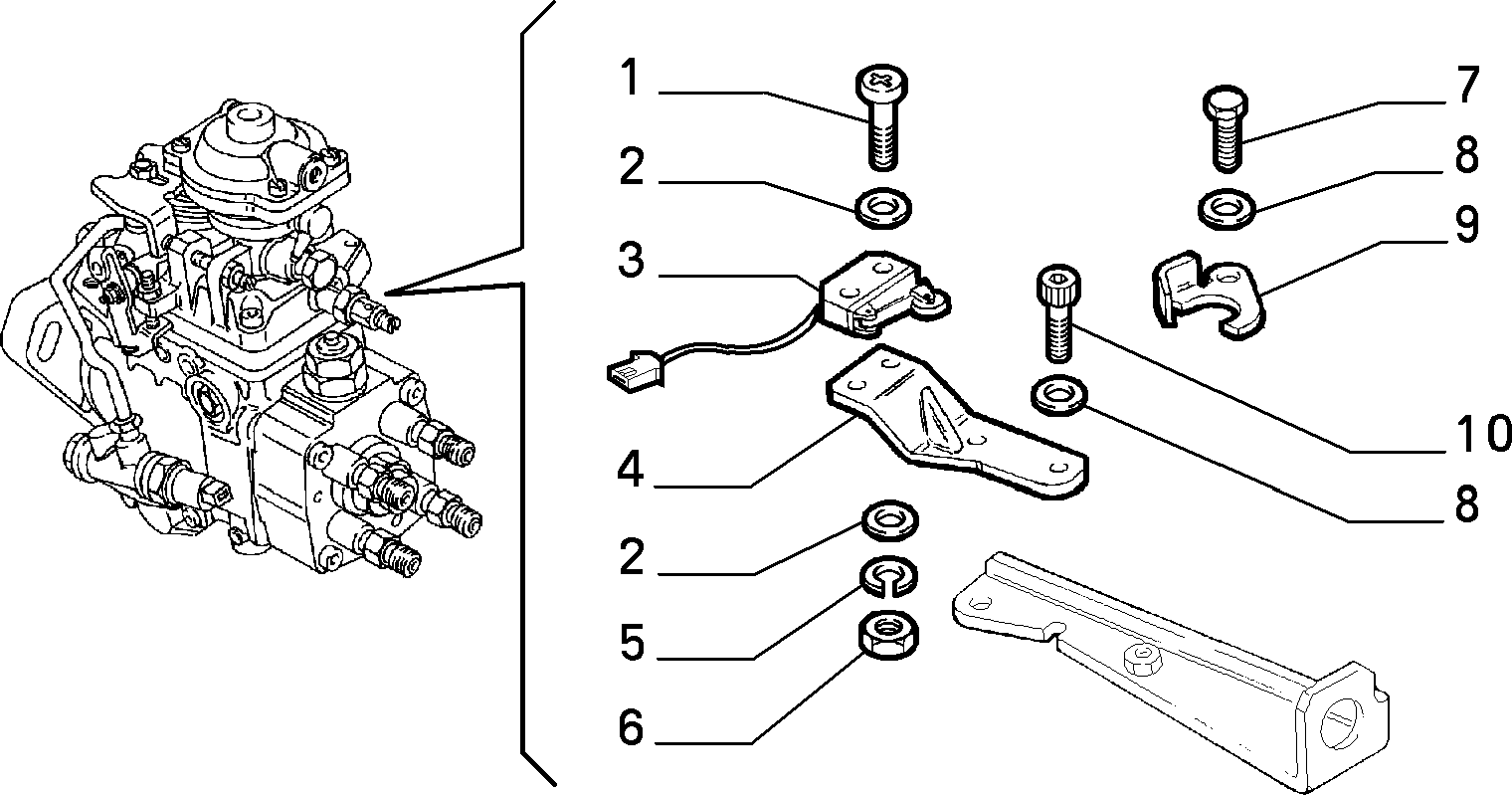

An image of parts — 10226/03 - BR├äNSLE INSPRUTNIGS SYSTEM (Var.:1/Rev.:0)

An image of parts — 10226/03 - BR├äNSLE INSPRUTNIGS SYSTEM (Var.:2/Rev.:0)

An image of parts — 10226/03 - BR├äNSLE INSPRUTNIGS SYSTEM (Var.:3/Rev.:0)

An image of parts — 10226/03 - BR├äNSLE INSPRUTNIGS SYSTEM (Var.:4/Rev.:0)
