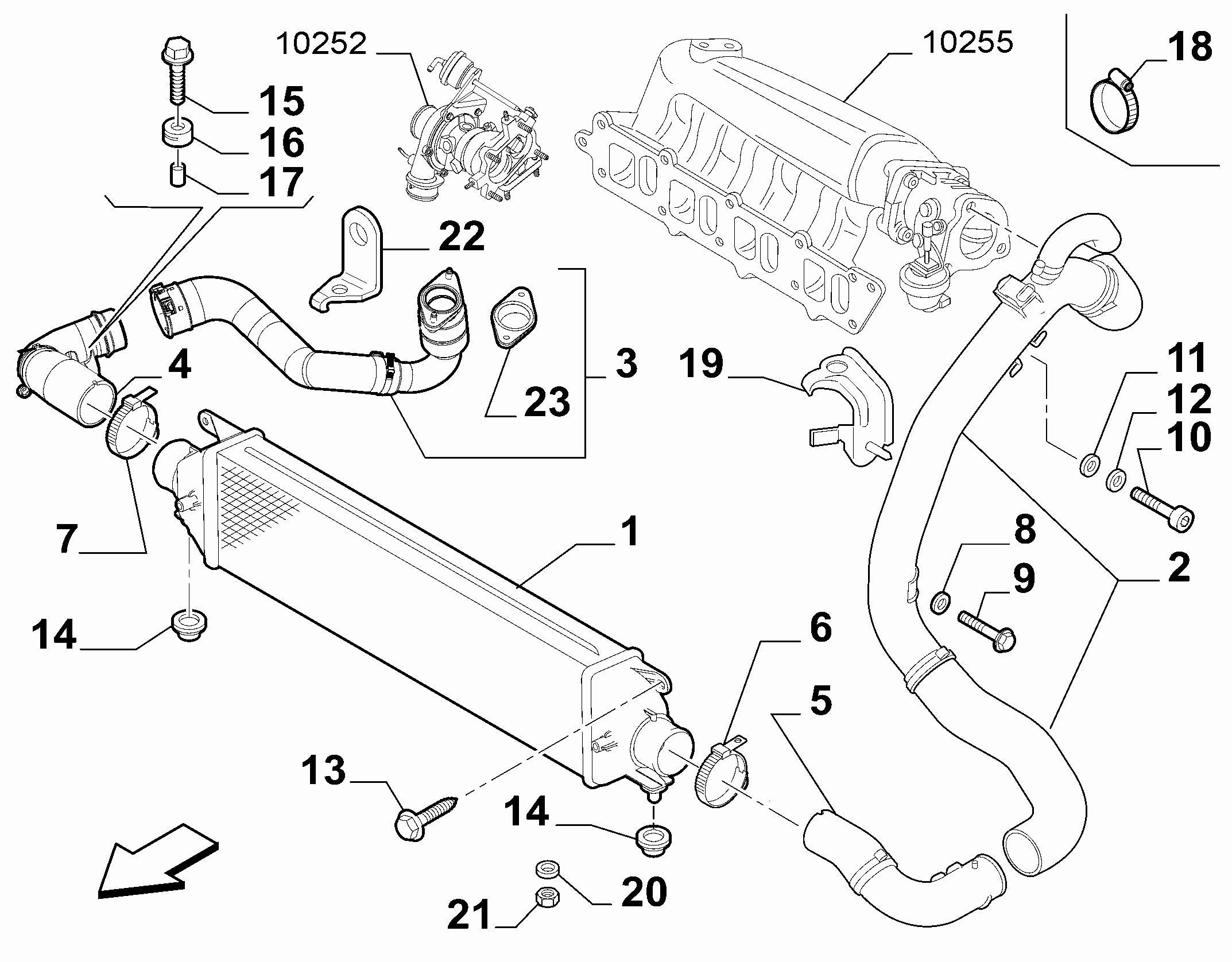

| code | Prod. code | Description | Compat. | Modif. | Qty | Notes | Components | Colour | Reman. |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 51808365 | HEAT EXCHANGER |
|
01 | |||||
| 2 | 51850005 | SLEEVE |
|
01 | |||||
| 3 | 51858916 | SLEEVE |
|
01 | |||||
| 4 | 51808415 | SLEEVE |
|
01 | |||||
| 5 | 51808416 | SLEEVE |
|
01 | |||||
| 6 | 71714117 | COLLAR DIAM 65 |
|
03 | |||||
| 7 | 71714116 | COLLAR DIAM 50 |
|
01 | |||||
| 8 | 10873124 | SCREW M6X30 |
|
01 | |||||
| 9 | 12624904 | PLANE WASHER |
|
02 | |||||
| 10 | 14306524 | SCREW M8X45 |
|
03 | |||||
| 11 | 11193874 | LOCK WASHER |
|
03 | |||||
| 12 | 14496507 | PLANE WASHER |
|
03 | |||||
| 13 | 15699801 | SCREW |
|
01 | |||||
| 14 | 7742733 | RUBBER BUSHING |
|
03 | |||||
| 15 | 11730924 | SCREW AND WASHERASSY |
|
03 | |||||
| 16 | 51806256 | PAD |
|
03 | |||||
| 17 | 51806257 | BUSH |
|
03 | |||||
| 18 | 13097290 | COLLAR DIAM 35 |
|
01 | |||||
| 19 | 55218780 | BRACKET |
|
01 | |||||
| 20 | 13046114 | NUT M6 |
|
02 | |||||
| 21 | 12647701 | PLANE WASHER 6X21 |
|
02 | |||||
| 22 | 51859000 | BRACKET |
|
01 | |||||
| 23 | 50526349 | SEAL GASKET | CC1.8 |
|
01 |
Linked diagrams
| Table code | Description |
|---|---|
|
10252
|
FUEL INJECTION SYSTEM - SUPERCHARGING |
|
10255
|
FUEL INJECTION SYSTEM - INTAKE MANIFOLD |
