FIAT ePER | openPER

code	Prod. code	Description	Compat.	Modif.	Qty
1	51783791	HEAT EXCHANGER	CC1.6		01
1	51808365	HEAT EXCHANGER	CC1.9,CC2.0		01
2	51821514	SLEEVE	CC1.6+(PCC530,PCC544)		01
2	51879552	SLEEVE	CC1.6+PCC635	C14714	01
2	51900149	SLEEVE	CC1.6+PCC635	D14714	01
2	51808413	SLEEVE	CC1.9,CC2.0	C14714	01
2	51900150	SLEEVE	CC1.9,CC2.0	D14714	01
3	51820479	SLEEVE	CC1.9	C13029	01
3	51849297	SLEEVE	CC1.9	D13029	01
4	51808415	SLEEVE	CC1.9,CC2.0		01
4	51825168	SLEEVE	CC1.6	C12948	01
4	51842990	SLEEVE	CC1.6	D12948	01
5	51792357	SLEEVE	CC1.6		01
5	51808416	SLEEVE	CC1.9,CC2.0		01
6	71714117	COLLAR DIAM 65			03
7	71714116	COLLAR DIAM 50			01
8	10873124	SCREW M6X30			01
9	12624904	PLANE WASHER			02
10	14306524	SCREW M8X45			03
11	11193874	LOCK WASHER			03
12	14496507	PLANE WASHER			03
13	15699801	SCREW			01
14	7742733	RUBBER BUSHING			03
15	11730924	SCREW AND WASHERASSY			03
16	51806256	PAD			03
17	51806257	BUSH DIAM 35			03
19	55222964	BRACKET	CC1.6+PCC530+!407		01
19	55213054	BRACKET	CC1.6+PCC635+!407		01
19	55218330	BRACKET	407		01
19	55219275	BRACKET	CC1.9		01
19	55218555	BRACKET	CC2.0+PCC542		01
19	55227637	BRACKET	CC2.0+PCC635		01
20	13046114	NUT M6			02
21	12647701	PLANE WASHER 6X21			02
22	51842989	SLEEVE	CC1.6+(PCC530,PCC544)		01
22	51879555	SLEEVE	CC1.6+PCC635		01
22	51808414	SLEEVE	CC2.0		01
23	51825169	BRACKET	CC1.6		01
24	71714117	COLLAR	CC1.9	D13029	01
25	51849298	PIPE	CC1.9	D13029	01
26	51835794	SEAL GASKET	CC2.0		1

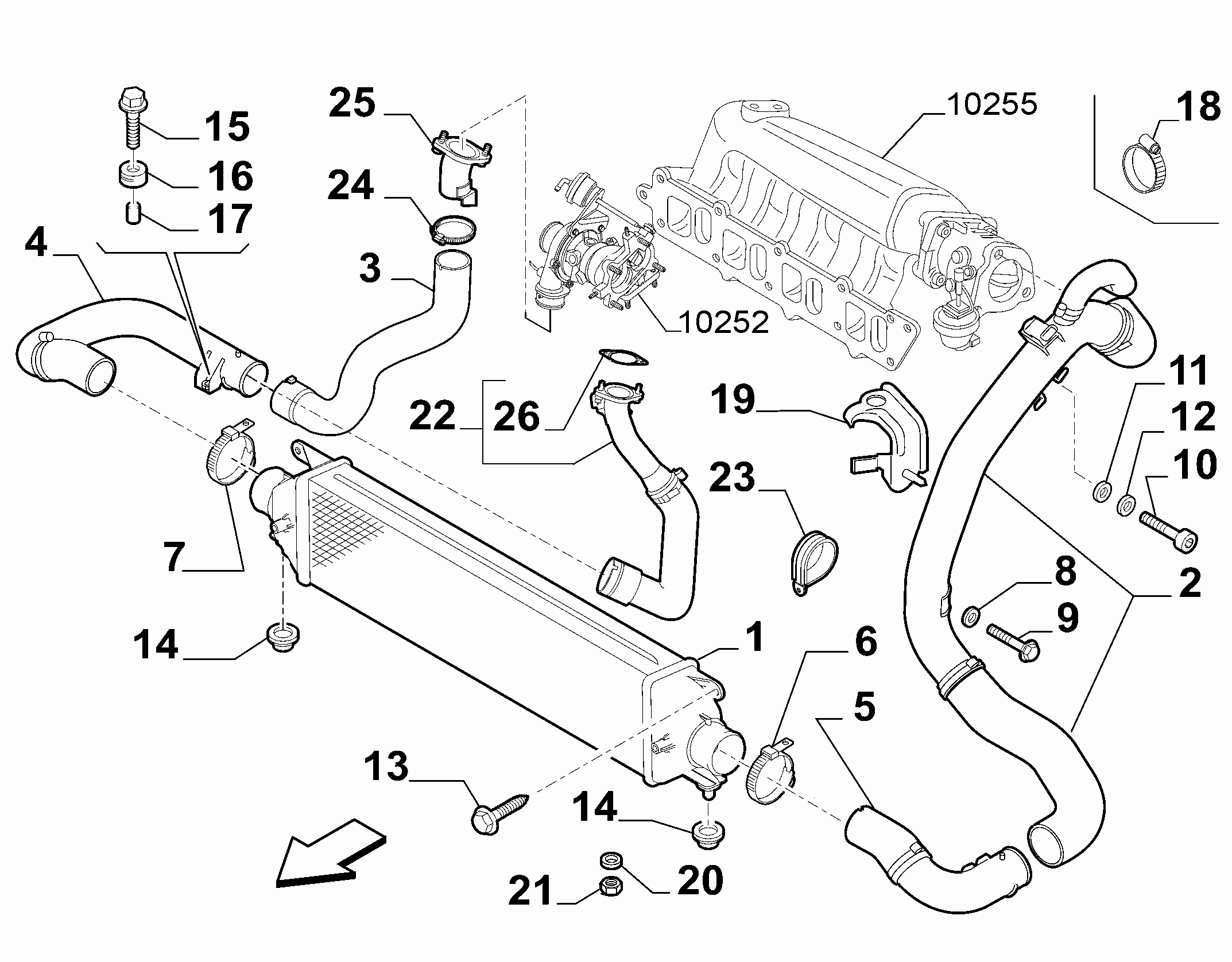

An image of parts — 10247/01 - HEAT EXCHANGER AND PIPE (Var.:1/Rev.:0)
