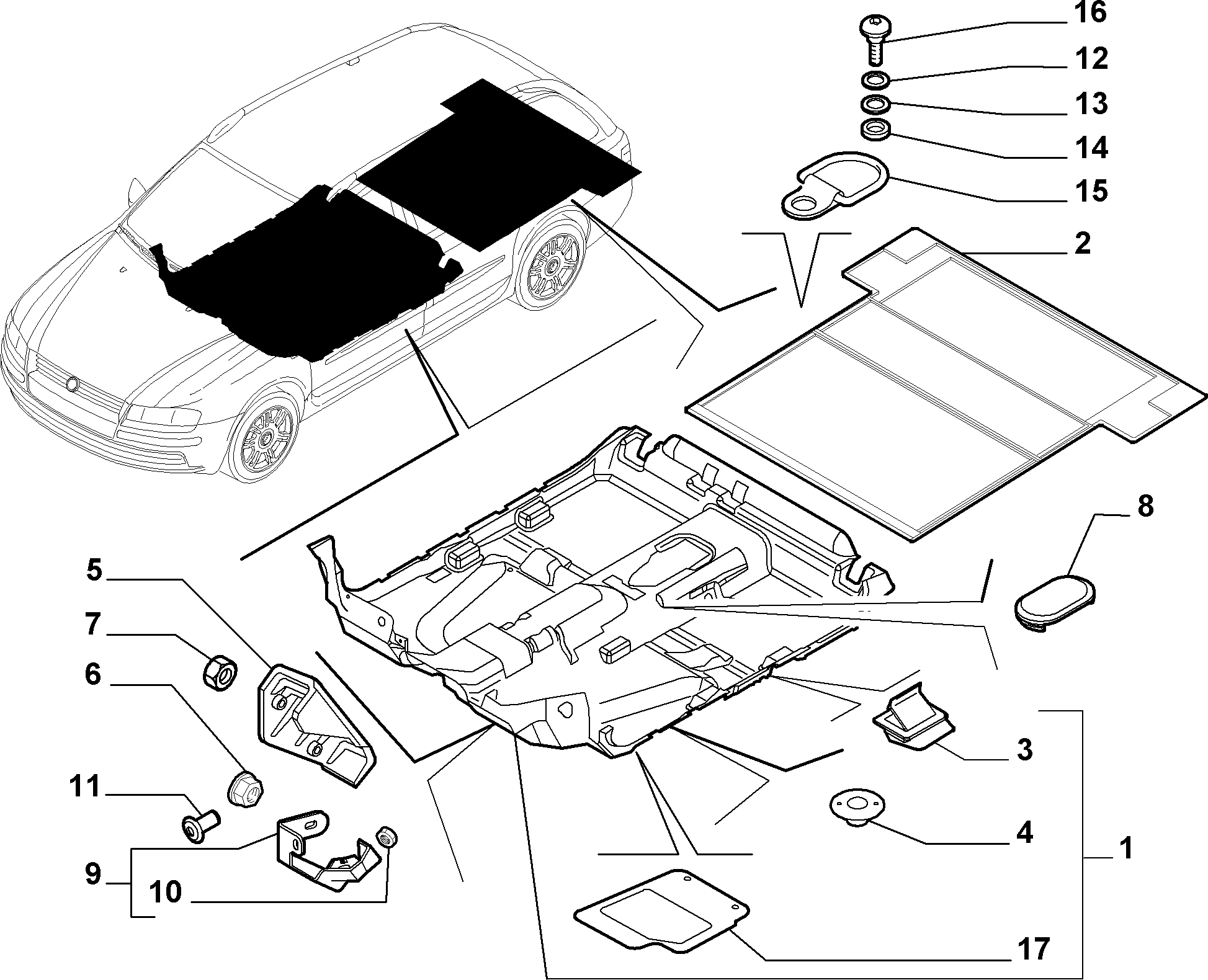

| code | Prod. code | Description | Compat. | Modif. | Qty | Notes | Components | Colour | Reman. |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 735358414 | MAT | GS+(V3,LV4,LV5) |
|
01 | ||||
| 1 | 735358414 | MAT | GS+(V8,LV10,LV11,V14) |
|
01 | ||||
| 1 | 735358412 | MAT | GD+(V3,V8,V14) |
|
01 | ||||
| 2 | 735336683 | MAT | V3,V8,V14 |
|
01 | ||||
| 2 | 735336684 | MAT | E469+(V3,V8,V14) |
|
01 | ||||
| 3 | 735287082 | LID |
|
01 | |||||
| 4 | 7799951 | BUTTON 5X30 |
|
02 | |||||
| 5 | 735374236 | FOOTREST | GS |
|
01 | ||||
| 5 | 735374237 | FOOTREST | GD |
|
01 | ||||
| 6 | 14059210 | NUT | GS |
|
01 | ||||
| 7 | 14059211 | NUT | GS |
|
01 | ||||
| 7 | 11568127 | SCREW | GD |
|
01 | ||||
| 8 | 735374240 | ORNAMENT |
|
01 | |||||
| 9 | 46815343 | BRACKET | GS |
|
01 | ||||
| 9 | 46841931 | BRACKET | GD |
|
01 | ||||
| 10 | 14096900 | NUT |
|
01 | |||||
| 11 | 14644990 | RIVET | GS |
|
02 | ||||
| 12 | 7602995 | LOCK WASHER | E469 |
|
02 | ||||
| 13 | 11193979 | LOCK WASHER |
|
02 | |||||
| 14 | 60610669 | SPACER |
|
02 | |||||
| 15 | 51715680 | PLATE |
|
04 | |||||
| 16 | 7780963 | SCREW |
|
02 | |||||
| 17 | 735276783 | MAT LH | GS |
|
01 | ||||
| 17 | 735276786 | MAT LH | GD |
|
01 | ||||
| 17 | 735276781 | MAT RH | GS |
|
01 | ||||
| 17 | 735276782 | MAT RH | GD |
|
01 |
