code	Prod. code	Description	Compat.	Modif.	Qty	Notes	Components	Colour	Reman.
1	82416363	HEAT EXCHANGER			01
2	4458284	RESILIENT BUSH			02
3	10902824	SCREW			01
4	12643721	PLANE WASHER			03
5	82281655	SPACER			03
6	82281653	PAD			01
7	82419629	BRACKET			01
8	12601274	LOCK WASHER			02
9	15896211	NUT			03
10	15684401	SCREW			01
11	14222285	PAD			01
12	13000890	COLLAR			04
13	82421430	HOSE		C8856	01
14	82416377	SLEEVE			01
15	16085501	SCREW			04
16	82424066	CONVEYOR			01

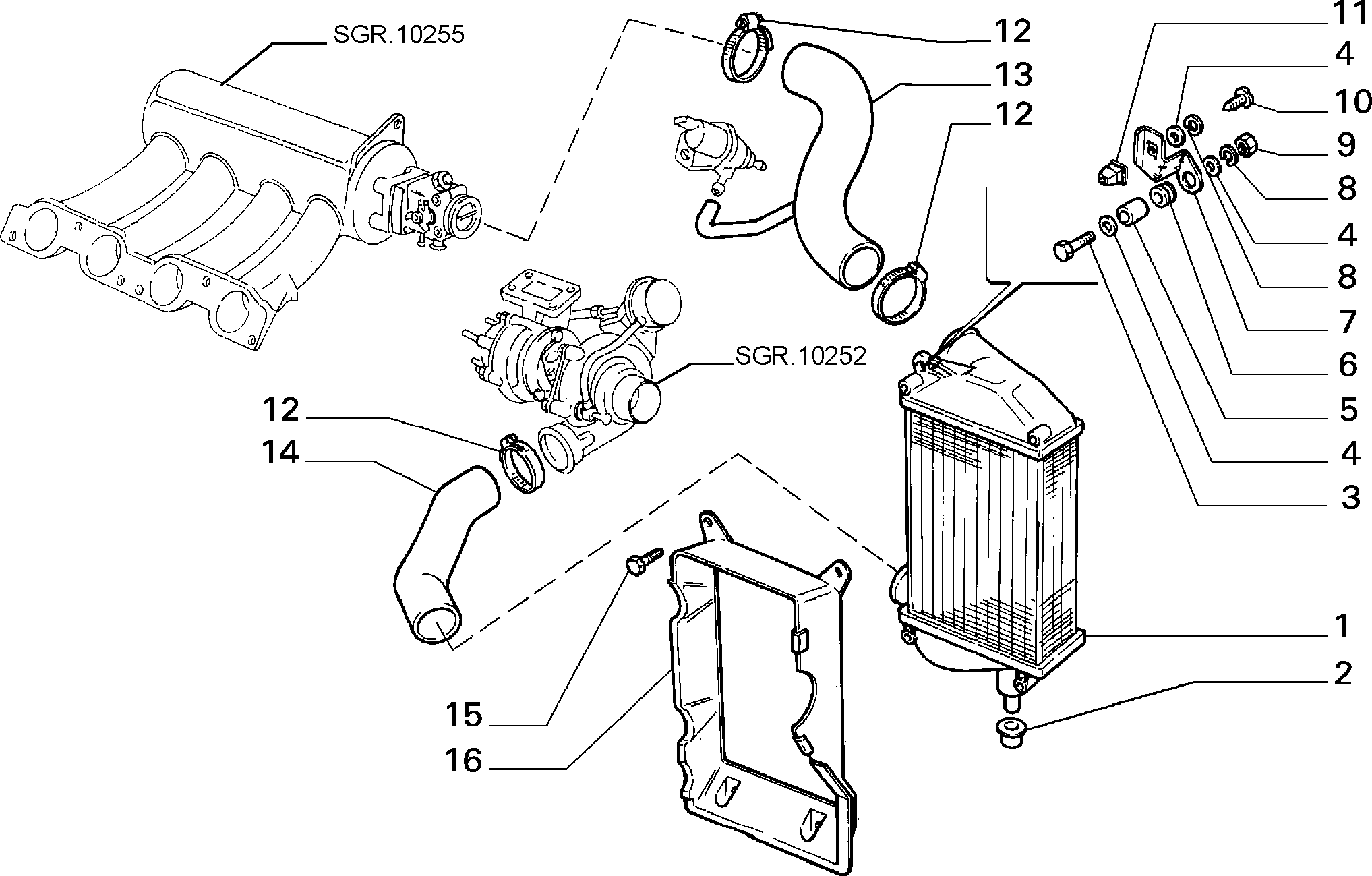

An image of parts — 10247/00 - HEAT EXCHANGER AND PIPE (Var.:1/Rev.:0)

An image of parts — 10247/00 - HEAT EXCHANGER AND PIPE (Var.:2/Rev.:0)

An image of parts — 10247/00 - HEAT EXCHANGER AND PIPE (Var.:3/Rev.:0)
