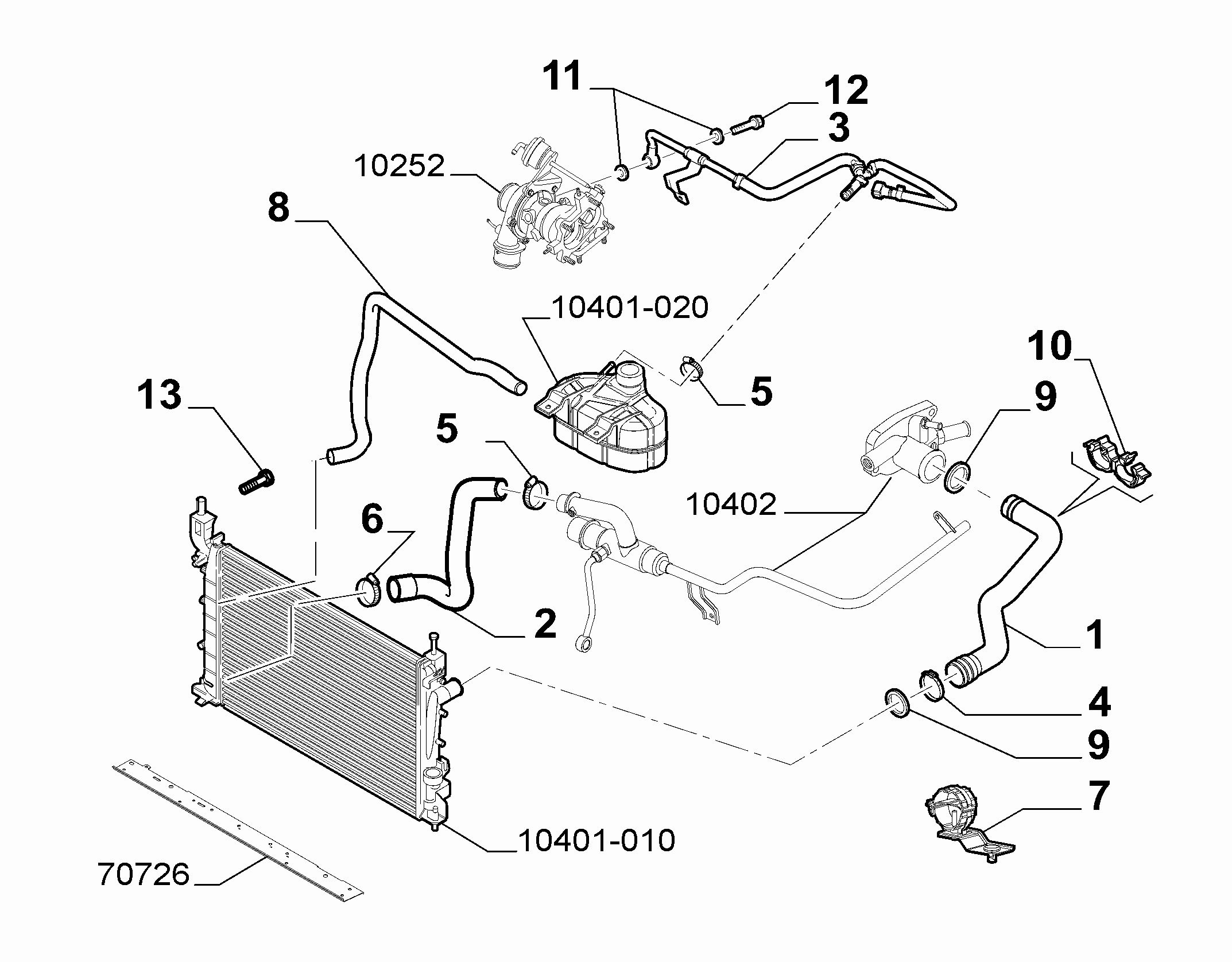

| code | Prod. code | Description | Compat. | Modif. | Qty | Notes | Components | Colour | Reman. |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 59116991 | SLEEVE INGRESSO | KW70 |
|
01 | ||||
| 1 | 51791035 | SLEEVE INGRESSO | KW82 |
|
01 | ||||
| 2 | 59116992 | SLEEVE USCITA | KW70 |
|
01 | ||||
| 2 | 51825662 | SLEEVE USCITA | KW82 |
|
01 | ||||
| 3 | 59064166 | VENT PIPE | KW70 |
|
01 | ||||
| 3 | 51789114 | VENT PIPE | KW82 |
|
01 | ||||
| 4 | 59089020 | COLLAR |
|
02 | |||||
| 5 | 59089022 | COLLAR |
|
04 | |||||
| 6 | 46752952 | COLLAR |
|
01 | |||||
| 7 | 59064274 | BRACKET | KW70 |
|
01 | ||||
| 8 | 51825663 | SLEEVE |
|
01 | |||||
| 9 | 11270260 | SEAL GASKET |
|
02 | |||||
| 10 | 46814560 | CLIP |
|
01 | |||||
| 11 | 51823615 | SEAL GASKET |
|
02 | |||||
| 12 | 10185111 | UNION |
|
01 | |||||
| 13 | 55703595 | CLIP | KW82 |
|
01 |
Linked diagrams
| Table code | Description |
|---|---|
|
10401-010
|
COOLING SYSTEM - RADIATOR AND LEADS - RADIATOR |
|
10401-020
|
COOLING SYSTEM - RADIATOR AND LEADS - FUEL TANK EXPANSION |
|
10402
|
COOLING SYSTEM - WATER PUMP AND LINES |
|
10252
|
FUEL INJECTION SYSTEM - SUPERCHARGING |
|
70726
|
OUTER ACCESSORIES - FRONT BUMPER |
