codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 96411974 CYLINDER HEAD LH
  • C1030
 01
1 96412435 CYLINDER HEAD LH
  • D1030
 01
2 96411973 CYLINDER HEAD RH
  • C1030
 01
2 96412434 CYLINDER HEAD RH
  • D1030
 01
3 210008068 STUD
16
4 210008105 STUD
03
5 210005936 STUD
02
6 15970111 SCREW
02
7 16102311 NUT
16
8 10841220 DOWEL
16
9 13522170 INSERT
06
10 10284460 SEAL GASKET
02
11 10257050 SEAL GASKET
06
12 60574838 PLUG
01
13 14328701 PLUG
02
14 60605955 SEAL GASKET
06
15 60507292 PLUG
06
16 12601374 LOCK WASHER
16
17 10269150 PLUG M6X1
02
17 60655808 PLUG M8X1,25
02

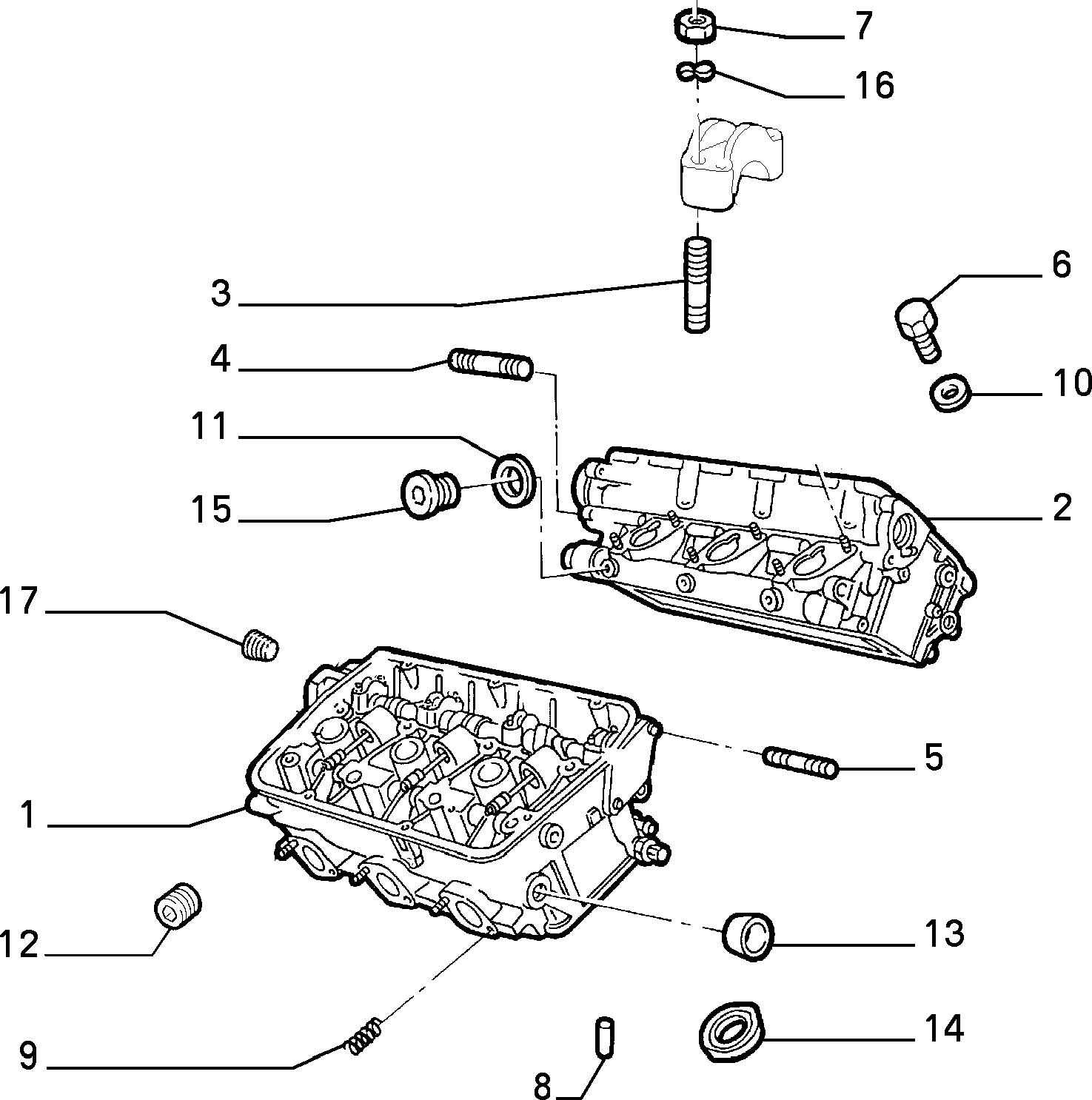

An image of parts
10101/00 - CRANKCASE AND CYLINDER HEAD (Var.:1/Rev.:0)
An image of parts
10101/00 - CRANKCASE AND CYLINDER HEAD (Var.:2/Rev.:0)
An image of parts
10101/00 - CRANKCASE AND CYLINDER HEAD (Var.:3/Rev.:0)
An image of parts
10101/00 - CRANKCASE AND CYLINDER HEAD (Var.:4/Rev.:0)
An image of parts
10101/00 - CRANKCASE AND CYLINDER HEAD (Var.:5/Rev.:0)
An image of parts
10101/00 - CRANKCASE AND CYLINDER HEAD (Var.:6/Rev.:0)
