FIAT ePER | openPER

code	Prod. code	Description	Compat.	Modif.	Qty	Notes	Components	Colour	Reman.
1	113223561	CONSOLE LH			01
2	113224661	COVERING RH			01
3	60528009	PAD			01
4	112831961	CONNECTION RH			01
4	112832061	CONNECTION LH			01
5	15688301	SCREW			01
6	7729424	BRACKET			01
7	10519301	PLANE WASHER			02
8	60595227	STRIKER PLATE			02
9	60587929	SCREW AND WASHERASSY			02
10	60557857	BUMPER			03

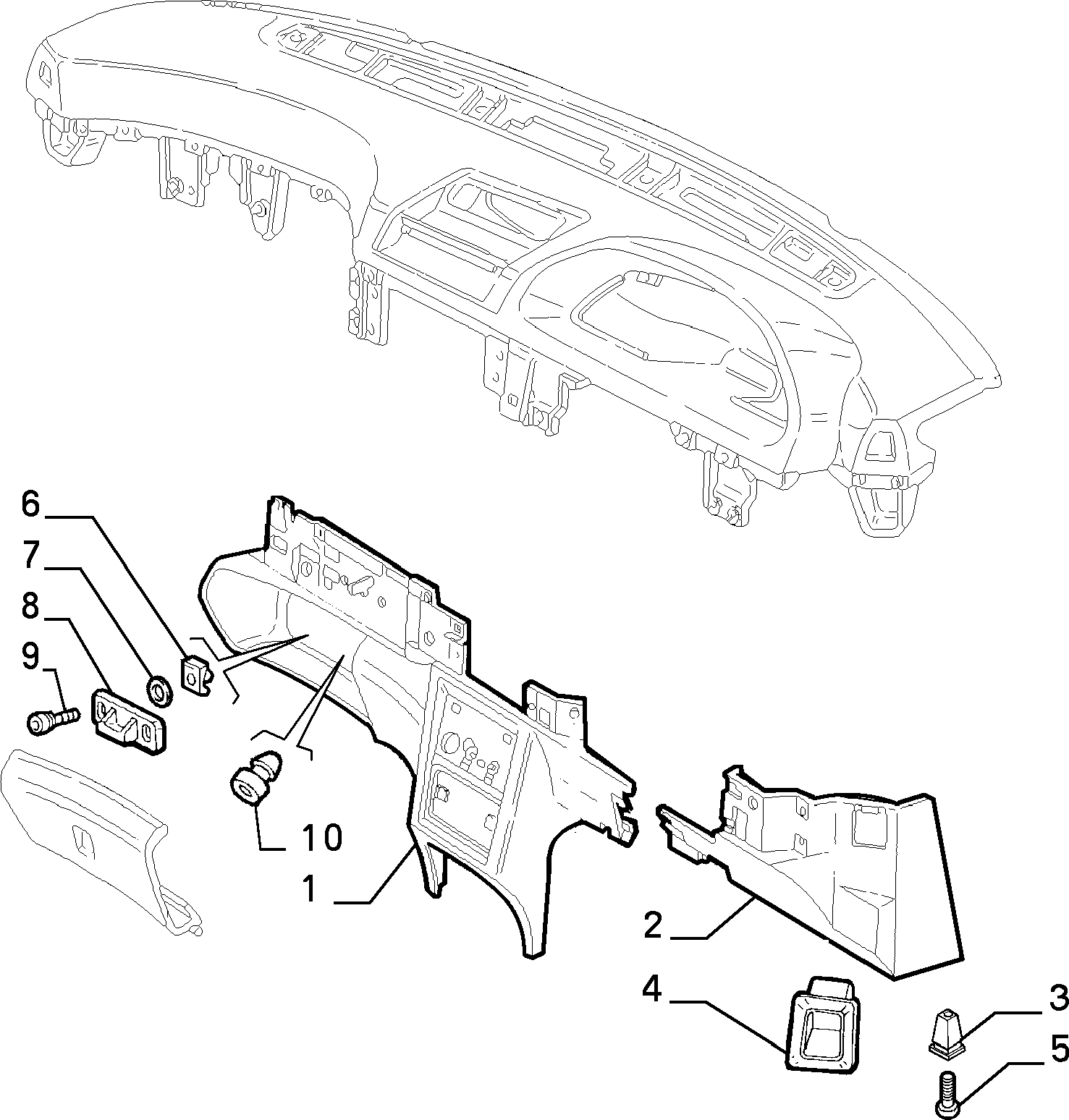

An image of parts — 70502/01 - DASHBOARD AND ADDITIONAL UNITS (Var.:1/Rev.:0)

An image of parts — 70502/01 - DASHBOARD AND ADDITIONAL UNITS (Var.:2/Rev.:0)

An image of parts — 70502/01 - DASHBOARD AND ADDITIONAL UNITS (Var.:3/Rev.:0)

An image of parts — 70502/01 - DASHBOARD AND ADDITIONAL UNITS (Var.:4/Rev.:0)

An image of parts — 70502/01 - DASHBOARD AND ADDITIONAL UNITS (Var.:5/Rev.:0)
