FIAT ePER | openPER

code	Prod. code	Description	Compat.	Modif.	Qty	Notes	Components	Colour	Reman.
1	735309597	INSTRUMENT PANEL			01
1	720218633	INSTRUMENT PANEL	E504		01
2	46415210	SCREW			03
3	7799484	SCREW			07
4	46426080	CLIP			02
5	7729424	BRACKET			13
6	15688901	SCREW			04
7	15690801	SCREW			06
8	735301065	PLUG			01
9	713845633	SUPPORT			01
9	100151562	COVERING	E504		01
10	714156614	ORNAMENT RH			01
10	716030614	ORNAMENT LH			01

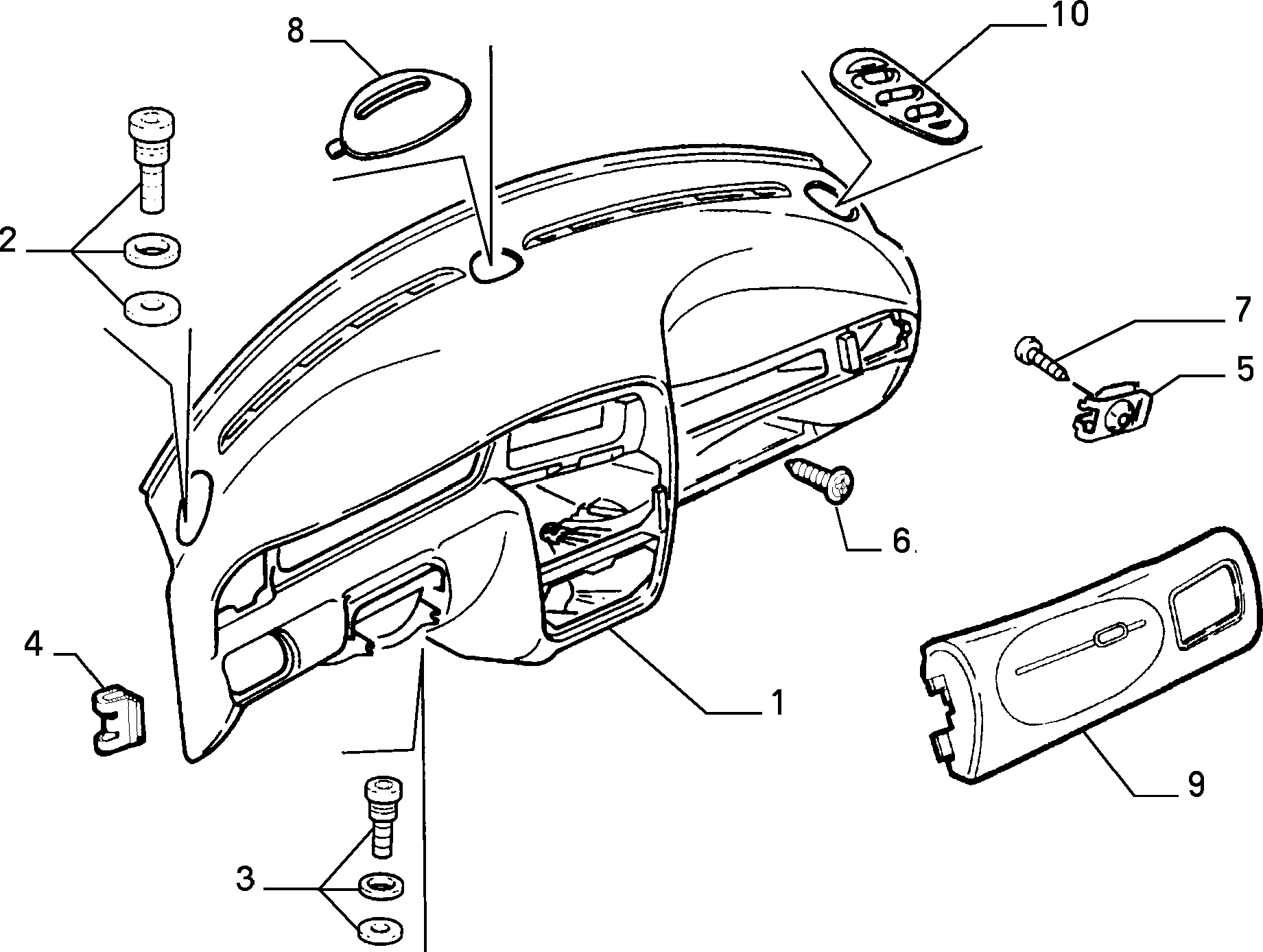

An image of parts — 70502/00 - DASHBOARD AND ADDITIONAL UNITS (Var.:1/Rev.:0)

An image of parts — 70502/00 - DASHBOARD AND ADDITIONAL UNITS (Var.:2/Rev.:0)

An image of parts — 70502/00 - DASHBOARD AND ADDITIONAL UNITS (Var.:3/Rev.:0)

An image of parts — 70502/00 - DASHBOARD AND ADDITIONAL UNITS (Var.:4/Rev.:0)

An image of parts — 70502/00 - DASHBOARD AND ADDITIONAL UNITS (Var.:5/Rev.:0)

An image of parts — 70502/00 - DASHBOARD AND ADDITIONAL UNITS (Var.:6/Rev.:0)

An image of parts — 70502/00 - DASHBOARD AND ADDITIONAL UNITS (Var.:7/Rev.:0)

An image of parts — 70502/00 - DASHBOARD AND ADDITIONAL UNITS (Var.:8/Rev.:0)
