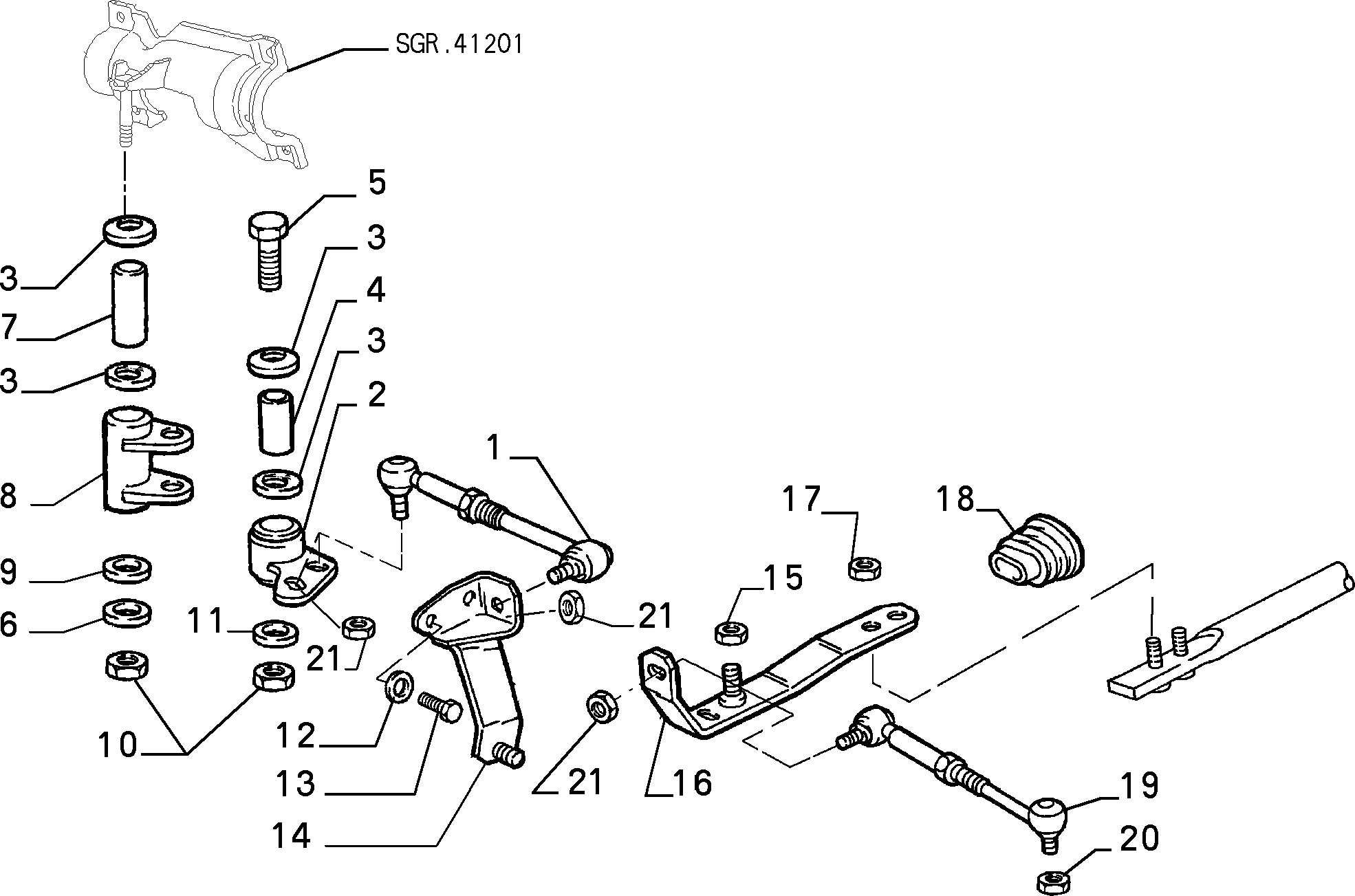

| code | Prod. code | Description | Compat. | Modif. | Qty | Notes | Components | Colour | Reman. |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 46522885 | ROD |
|
01 | |||||
| 2 | 7731492 | LEVER |
|
01 | |||||
| 3 | 7731493 | SEAL GASKET |
|
04 | |||||
| 4 | 7731484 | SPACER L=30,2 |
|
01 | |||||
| 5 | 16044224 | SCREW M8X50 |
|
01 | |||||
| 6 | 12642021 | PLANE WASHER |
|
01 | |||||
| 7 | 7731483 | SPACER L=46,2 |
|
01 | |||||
| 8 | 7731491 | LEVER |
|
01 | |||||
| 9 | 10519621 | PLANE WASHER |
|
01 | |||||
| 10 | 16104111 | NUT M8 |
|
02 | |||||
| 11 | 12638501 | PLANE WASHER |
|
01 | |||||
| 12 | 10571773 | LOCK WASHER |
|
01 | |||||
| 13 | 16043224 | SCREW M8X16 |
|
01 | |||||
| 14 | 7735303 | BRACKET |
|
01 | |||||
| 15 | 16104411 | NUT M8 |
|
01 | |||||
| 16 | 7731496 | BRACKET |
|
01 | |||||
| 17 | 14118811 | NUT M8 |
|
02 | |||||
| 18 | 7704080 | SEAL GASKET |
|
01 | |||||
| 19 | 46522883 | ROD |
|
01 | |||||
| 20 | 14137811 | NUT M8 |
|
01 | |||||
| 21 | 14076511 | NUT M8 |
|
03 |
