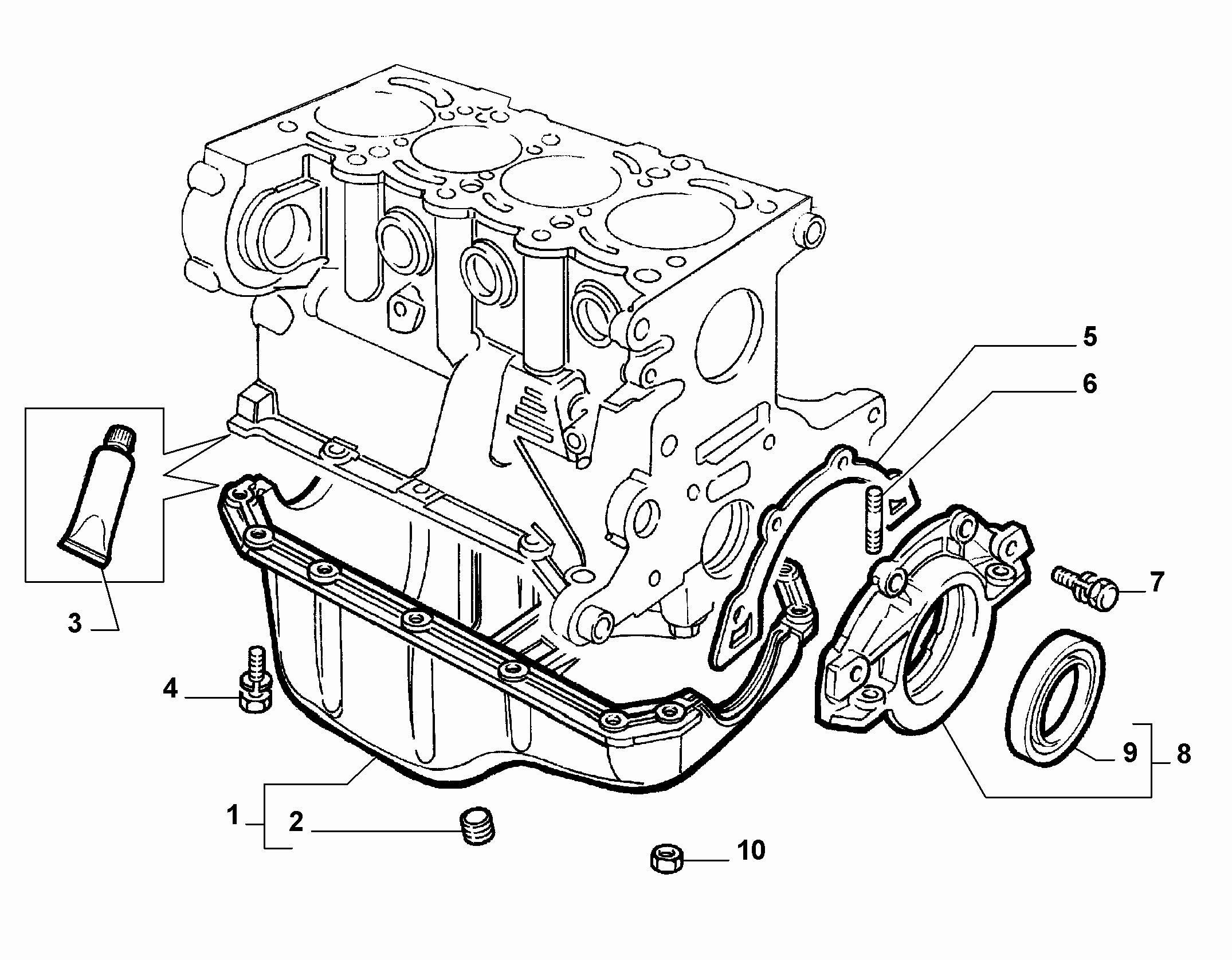

| code | Prod. code | Description | Compat. | Modif. | Qty | Notes | Components | Colour | Reman. |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 46515152 | OIL SUMP COMPL | M1,M4,M3 |
|
01 | ||||
| 1 | 46747597 | OIL SUMP COMPL | M1,M4,M3 |
|
01 | ||||
| 1 | 55200418 | OIL SUMP | M2 |
|
01 | ||||
| 2 | 7734022 | PLUG |
|
01 | |||||
| 3 | 71713687 | SEALER |
|
01 | |||||
| 4 | 18750224 | SCREW M6X16 | M1,M4,M3 |
|
19 | ||||
| 4 | 18750221 | SCREW M6X16 | M1,M4,M3 |
|
09 | ||||
| 4 | 18752424 | SCREW M8X25 | M1,M4,M3 |
|
10 | ||||
| 4 | 55192179 | SCREW | M2 |
|
09 | ||||
| 4 | 18752424 | SCREW | M2 |
|
10 | ||||
| 5 | 7765859 | SEAL GASKET | M1,M4,M3 |
|
01 | ||||
| 5 | 55187498 | SEAL GASKET | M1,M4,M3 |
|
01 | ||||
| 5 | 71716692 | SEAL GASKET | M2 |
|
01 | ||||
| 6 | 46445146 | STUD |
|
02 | |||||
| 7 | 11612624 | SCREW AND WASHERASSY |
|
04 | |||||
| 8 | 7724664 | COVER COMPL | M1,M4,M3 |
|
01 | ||||
| 8 | 55187497 | COVER | M1,M4,M3 |
|
01 | ||||
| 8 | 46543437 | COVER | M2 |
|
01 | ||||
| 8 | 46788297 | SEAL GASKET | M2 |
|
01 | ||||
| 9 | 71754491 | SEAL GASKET |
|
01 | |||||
| 10 | 14084711 | NUT |
|
04 |
