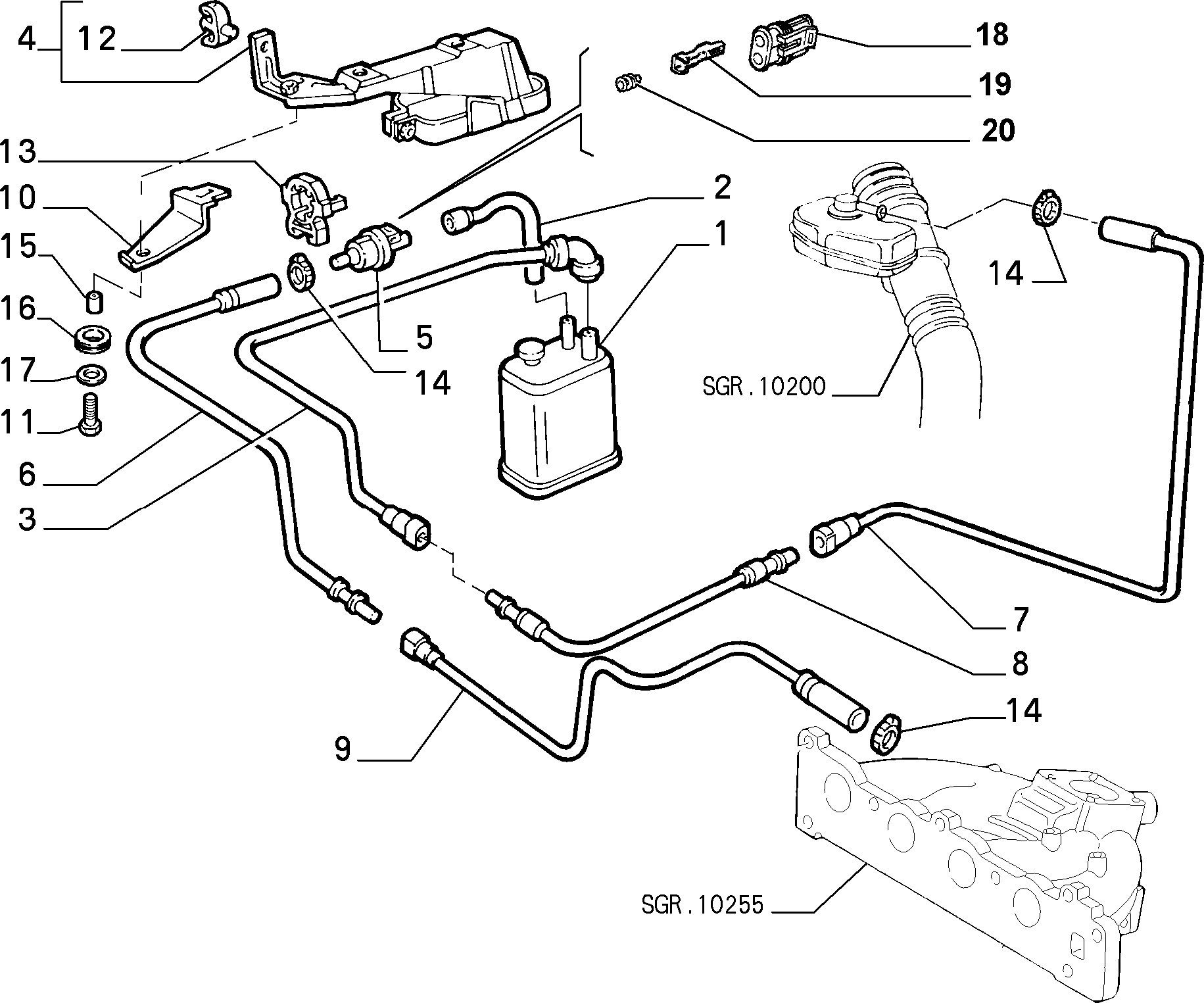

| code | Prod. code | Description | Compat. | Modif. | Qty | Notes | Components | Colour | Reman. |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 82488547 | VAPOR TRAP |
|
01 | |||||
| 2 | 46407852 | HOSE |
|
01 | |||||
| 3 | 46426968 | HOSE |
|
01 | |||||
| 4 | 46426472 | BRACKET |
|
01 | |||||
| 5 | 60611820 | ELECTRO-VALVE |
|
01 | |||||
| 6 | 46401792 | HOSE | M5 |
|
01 | ||||
| 6 | 7769950 | HOSE | M6 |
|
01 | ||||
| 7 | 46428227 | HOSE |
|
01 | |||||
| 8 | 46428228 | HOSE | M5 |
|
01 | ||||
| 8 | 46428228 | HOSE | GS+M6 |
|
01 | ||||
| 8 | 46477034 | HOSE | GS+M6 |
|
01 | ||||
| 8 | 46477034 | HOSE | GD+M6 |
|
01 | ||||
| 9 | 46455026 | HOSE | M5 |
|
01 | ||||
| 9 | 46434256 | HOSE | M6 |
|
01 | ||||
| 10 | 7774298 | BRACKET |
|
01 | |||||
| 11 | 60810859 | SCREW |
|
01 | |||||
| 12 | 14575580 | CLIP |
|
01 | |||||
| 13 | 46456547 | CLIP |
|
01 | |||||
| 14 | 13118970 | COLLAR DIAM 8 |
|
01 | |||||
| 14 | 13126970 | COLLAR DIAM 11,5 |
|
01 | |||||
| 14 | 13000190 | COLLAR DIAM 14,5 |
|
01 | |||||
| 14 | 13432070 | COLLAR DIAM 15,7 |
|
02 | |||||
| 15 | 4130913 | SPACER |
|
01 | |||||
| 16 | 4130912 | PAD |
|
01 | |||||
| 17 | 12643704 | PLANE WASHER |
|
01 | |||||
| 18 | 12452587 | CONNECTION 2 VIE |
|
01 | |||||
| 19 | 12451754 | TERMINAL |
|
02 | |||||
| 20 | 12452181 | SEAL GASKET |
|
02 |
